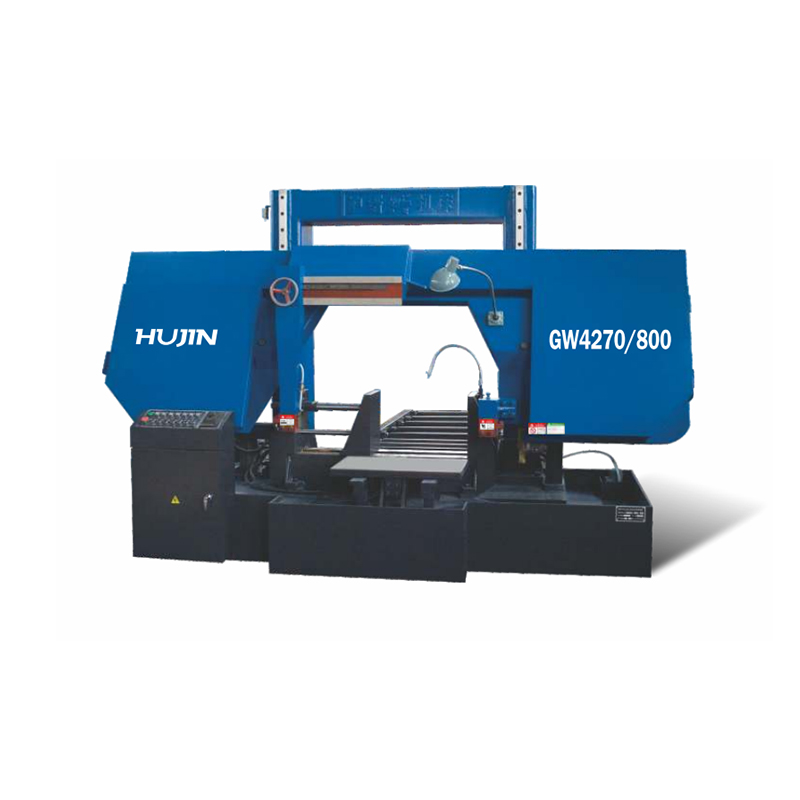

Horizontal Metal Band Sawing Machine: Reliable Cutting for Fabrication Shops

The horizontal metal band sawing machine has become a cornerstone of metal fabrication shops, machine shops, and maintenance facilities requiring accurate, efficient cutting of bars, tubes, and structural shapes. This machine features a horizontal frame design where the saw blade moves vertically through the workpiece, providing stable cutting action and consistent results across a wide range of materials and sizes. Recent industry reports indicate that horizontal band saws remain the widely used cutting equipment in metalworking due to their versatility, ease of operation, and ability to deliver precise cuts with small material waste. The machine's design allows for both manual and automatic operation, making it suitable for both job shops and high-volume production environments.

Frame Construction and Stability

The horizontal metal band sawing machine is built with a heavy-duty steel frame that provides stability and rigidity during cutting operations. The frame is constructed from welded steel sections that are stress-relieved to prevent distortion, ensuring the machine maintains its alignment over years of heavy use. The horizontal design features a saw bow that pivots or moves vertically to bring the blade into the workpiece, with the cutting action guided by precision bearings or guideways that ensure smooth, consistent blade movement. The frame includes a sturdy worktable that supports the workpiece during cutting, with the table surface precision-ground to ensure accurate workpiece positioning. The frame construction absorbs cutting forces, reducing vibration and extending blade life. The frame also includes adjustable leveling feet that allow the machine to be leveled on uneven floors, ensuring stable operation.

Cutting Capacity and Material Handling

The horizontal metal band sawing machine offers a range of cutting capacities to accommodate different workpiece sizes and shapes. The machines are available with cutting capacities ranging from 150 to 500 millimeters in diameter, allowing them to handle solid bars, tubes, and structural shapes such as beams and channels. The machines can cut a variety of materials, including carbon steel, stainless steel, aluminum, and copper alloys, with the cutting performance optimized through adjustable blade speed and feed rate settings. The worktable includes a vise system for securing the workpiece, with the vise designed to hold materials securely during cutting. The material handling system includes roller supports or a feed table for long workpieces.

Key cutting capacity features include:

• Adjustable blade speed for different material hardness;
• Hydraulic or manual vise clamping for secure workpiece holding;
• Powered roller feed systems for handling long materials;
• Material stop for accurate length cutting and repeatability.

Blade System and Drive Mechanism

The horizontal metal band sawing machine is equipped with a blade system that delivers consistent cutting performance and long blade life. The blade system includes a continuous band blade that travels around two large-diameter blade wheels, with the blade wheels providing stable blade tracking and smooth operation. The blade guides support the blade at the cutting point, with the guides equipped with carbide inserts that resist wear and maintain blade alignment. The blade drive system includes a motor, gearbox, and drive belt that deliver consistent power to the blade wheels, with the motor selected for its durability and energy efficiency.

The blade tensioning system ensures proper blade tension for ideal cutting performance, with the tension maintained automatically on many models. The blade system is protected by a safety cover that prevents accidental contact.

Control System and Coolant Features

The horizontal metal band sawing machine features a control system that provides straightforward operation and consistent cutting results. The control system includes controls for blade speed and feed rate that allow operators to match cutting parameters to the material being cut, start and stop controls that provide simple machine operation, and an emergency stop that immediately halts all machine functions. The control system is designed for ease of use, with clear labeling and intuitive controls. Many models include a digital display that shows blade speed and feed rate.

The machine includes a coolant system that extends blade life and improves cutting quality. The coolant system includes a coolant pump that delivers fluid to the cutting zone, a nozzle that directs coolant to the blade, and a reservoir that collects and recirculates coolant. The chip removal system includes a chip brush or conveyor that removes cutting debris.

Applications and Selection Factors

The horizontal metal band sawing machine serves a wide range of industries and applications. In fabrication shops, it cuts raw materials to length for further processing. In machine shops, it prepares workpieces for machining operations. In maintenance facilities, it cuts replacement parts and repair materials. The machine is also used in construction, automotive, and aerospace industries.

When selecting a horizontal metal band sawing machine, buyers evaluate cutting capacity and material compatibility, frame construction and stability, blade system and drive mechanism, and control system and operation. Buyers also consider the machine's coolant system and chip removal capabilities, as well as the manufacturer's reputation for quality and after-sales support. The machine's ability to deliver consistent, accurate cuts over long production runs is an important factor in the selection process. The machine's versatility makes it a valuable addition to any metalworking facility.
