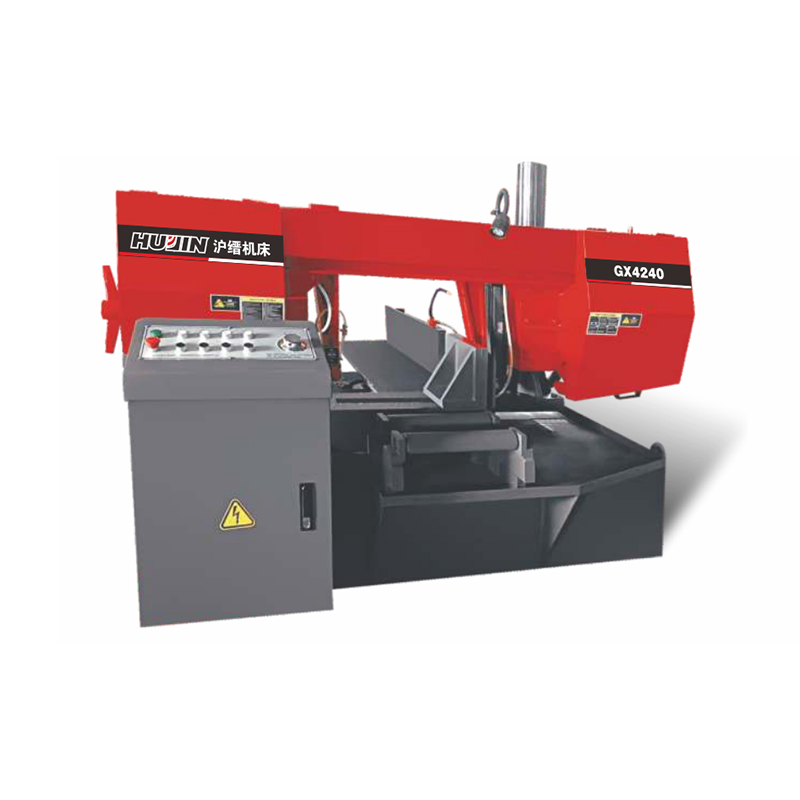

Rotary Horizontal Band Sawing Machine: Versatile Cutting for Angle and Miter Operations

The rotary horizontal band sawing machine has become a valuable cutting solution for metal fabrication shops, structural steel contractors, and machine shops requiring precise angle and miter cuts in addition to standard straight cutting. This machine features a saw head that rotates on a vertical axis, allowing operators to set cutting angles from 0 to 60 degrees without repositioning the workpiece, significantly improving efficiency in applications requiring multiple angle cuts. Recent industry reports indicate that rotary band saws have gained popularity in structural steel fabrication due to their ability to produce accurate miter cuts for frames, trusses, and structural connections with small setup time. The rotary design eliminates the need for manual workpiece repositioning, reducing handling time and improving cutting accuracy.

Rotary Cutting Head and Angle Adjustment

The rotary horizontal band sawing machine features a saw head that rotates on a precision-machined turntable base, allowing operators to quickly set cutting angles without moving the workpiece. The rotary mechanism is equipped with a locking system that securely holds the desired angle, with angle settings typically adjustable from 0 to 60 degrees in both left and right directions to accommodate a wide range of cutting requirements. The angle adjustment is controlled through a hand wheel or digital positioning system, with graduated scales providing accurate angle readouts that allow operators to verify settings at a glance. The rotating head design includes heavy-duty bearings that ensure smooth rotation and maintain alignment during cutting operations, even under heavy loads.

Key angle adjustment features include:

• Precision-machined turntable base for accurate rotation;
• Positive locking system for secure angle retention;
• Graduated scales for accurate angle setting;
• Digital readout options for precise angle verification.

The rotary mechanism is designed for durability, with the turntable bearings protected from dust and debris. The locking system is easy to operate, allowing quick changes between cuts.

Frame Construction and Stability

The rotary horizontal band sawing machine is built with a heavy-duty steel frame that provides stability during cutting operations. The frame construction includes the base, saw bow, and rotary mechanism, with the base designed to support the workpiece and rotary components. The base is constructed from thick steel plates that are welded and stress-relieved to prevent distortion, ensuring the machine maintains its alignment over years of heavy use. The frame includes a sturdy worktable that supports the workpiece during cutting, with the table surface precision-ground to ensure accurate workpiece positioning. The frame construction absorbs cutting forces, reducing vibration and extending blade life.

The frame also includes adjustable leveling feet that allow the machine to be leveled on uneven floors, ensuring stable operation. The rotary mechanism is mounted on the base with heavy-duty bearings that support the weight of the saw head and cutting forces. The frame is designed for easy access to components.

Cutting Capacity and Blade System

The rotary horizontal band sawing machine offers a range of cutting capacities to accommodate different workpiece sizes and shapes. The machines are available with cutting capacities ranging from 200 to 400 millimeters in diameter, allowing them to handle solid bars, tubes, and structural shapes such as beams, channels, and angles. The machines can cut a variety of materials, including carbon steel, stainless steel, aluminum, and copper alloys, with the cutting performance optimized through adjustable blade speed and feed rate settings. The worktable includes a vise system for securing the workpiece.

The blade system includes a continuous band blade, blade wheels, and blade guides. The blade guides support the blade at the cutting point, with the guides equipped with carbide inserts that resist wear. The blade drive system includes a motor, gearbox, and drive belt.

Applications and Selection Factors

The rotary horizontal band sawing machine serves a wide range of industries and applications. In structural steel fabrication, it produces miter cuts for frames, trusses, and structural connections. In machine shops, it cuts workpieces for machining operations. The machine is also used in construction, shipbuilding, and heavy equipment manufacturing.

When selecting a rotary horizontal band sawing machine, buyers evaluate cutting capacity and angle capability, frame construction and stability, blade system and drive mechanism, and control system and operation. Buyers also consider the machine's ease of angle adjustment and accuracy, as well as the manufacturer's reputation for quality and after-sales support. The machine's ability to produce accurate angle cuts with small setup time is an important factor in the selection process. Proper selection ensures efficient, accurate cutting for a wide range of fabrication applications.
